Home > Side Wall Semi Trailer >

ABCO Brake Q345 Steel Cargo Semi Trailer With 12pcs Tire

Product Categories

JINAN TRUCKMAN AUTOMOBILE CO.,LTD

Contact Now

Name: ABCO Brake Q345 Steel Cargo Semi Trailer With 12pcs Tire
Brand: TRUCKMAN AUTO
Price: 1 USD

Brand Name : TRUCKMAN AUTO

Model Number : TKM360FSVWS

Certification : SGS, BV, CIQ

Place of Origin : CHINA

MOQ : 1 Unit

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1500 Unit / Per Month

Delivery Time : 7-10 working days

Packaging Details : Nude

Overall Dimension : 12500*2500*1600+800mm

Tare Weight : 10500kg

Main Beam : The height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 8 mm.

Axle Brand : 13T/16T/20T BPW or FUWA

Leaf Spring : 90(W)mm*16(Thick)mm*10 Layer

Landing Gear : 28 tons

Contact Now

High Strength Steel Material Side Wall Cargo Trailer Used For Heavy Loading

-1. Side Wall Cargo Trailer Main Advantage.

-. Design for livestock transport.

-. With 800+600mm height side wall for convenient for unloading.

-. Tire choose the tubeless model, for long distance transport need.

-. Adopt the advance tech for trailer welding.

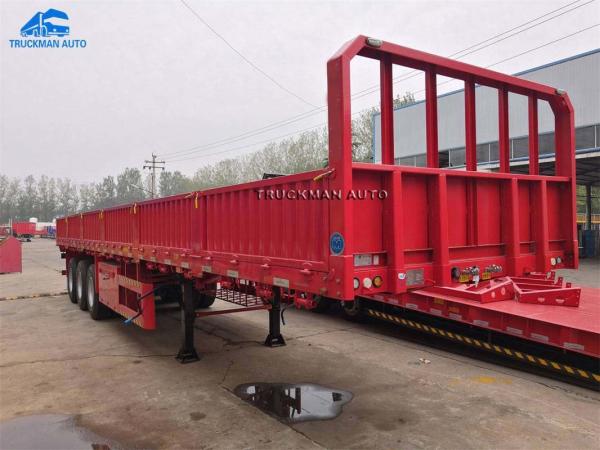

ABCO Brake Q345 Steel Cargo Semi Trailer With 12pcs Tire

-2. Side Wall Cargo Trailer Main Specification.

Description	Parameter value
Product Name	Side Wall Cargo Trailer
Loading Weight	60,000kg
Tare Weight	10,500kg
Axle	3 axle, 3x13 tons
Suspension	America type, 8mm thickness
Leaf Spring	90x16mmx10pcsx6sets
Rim	16mm thickness
Tire	12.00R20 or 315/80R22.5, 12 pcs
Brake System	WABCO brand, ABS and 6 pcs brake chamber
Thickness Of Frame	Upper plate 16mm, middle 8mm lower plate 18mm, “I” type main beam
Material	Q345, high strength steel
Dimension	12500x2500x3200mm

The specification is only for reference, we could design the Side Wall Cargo Trailer according to your request.

-3. SINOTRUCK HOWO Truck Head With Side Wall Cargo Trailer.

The chassis picture of side wall cargo trailer, with heavy duty design, such as 12 piece of leaf spring with thickness 90x16mm

and rim also use 18mm thickness.
