High Strength Steel 3 Axle 50 Tons Lowboy Semi Trailer

Product Categories

JINAN TRUCKMAN AUTOMOBILE CO.,LTD

Contact Now

Name: High Strength Steel 3 Axle 50 Tons Lowboy Semi Trailer
Brand: TRUCKMAN AUTO
Price: 1 USD

Brand Name : TRUCKMAN AUTO

Model Number : TKM349051

Certification : SGS, BV, CIQ, FORM M

Place of Origin : CHINA

MOQ : 1 Unit

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1500 Unit / Per Month

Delivery Time : 7-10 working days

Packaging Details : Nude

Leaf Spring : 90x16mmx10pcsx6sets

Axle : 3 axle, 3x13 Tons, FUWA

Suspension : 8mm thickness

Tire : 12.00R20 or 315/80R22.5

Brake System : WABCO brand, 6 pcs brake chamber

Warranty : 12 months

Contact Now

Brand New 50 Tons Lowboy Semi Trailer Available

-1. 50 Tons Lowboy Semi Trailer Main Detail.

When loading mechanical equipment on a lowboy semi trailer, the mechanical equipment is usually

loaded from the rear of the lowboy semi trailer, that is, the mechanical equipment is moved from the

rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the lowboy

semi trailer on. The lowboy semi trailer running structure uses high-strength international steel material,

which has a light weight and guarantees its anti-torsion, anti-vibration, and anti-bump capabilities, and

meets different road bearing capabilities. The width of the gooseneck part is: 1380mm, 1400mm, 1420mm, 1480mm.

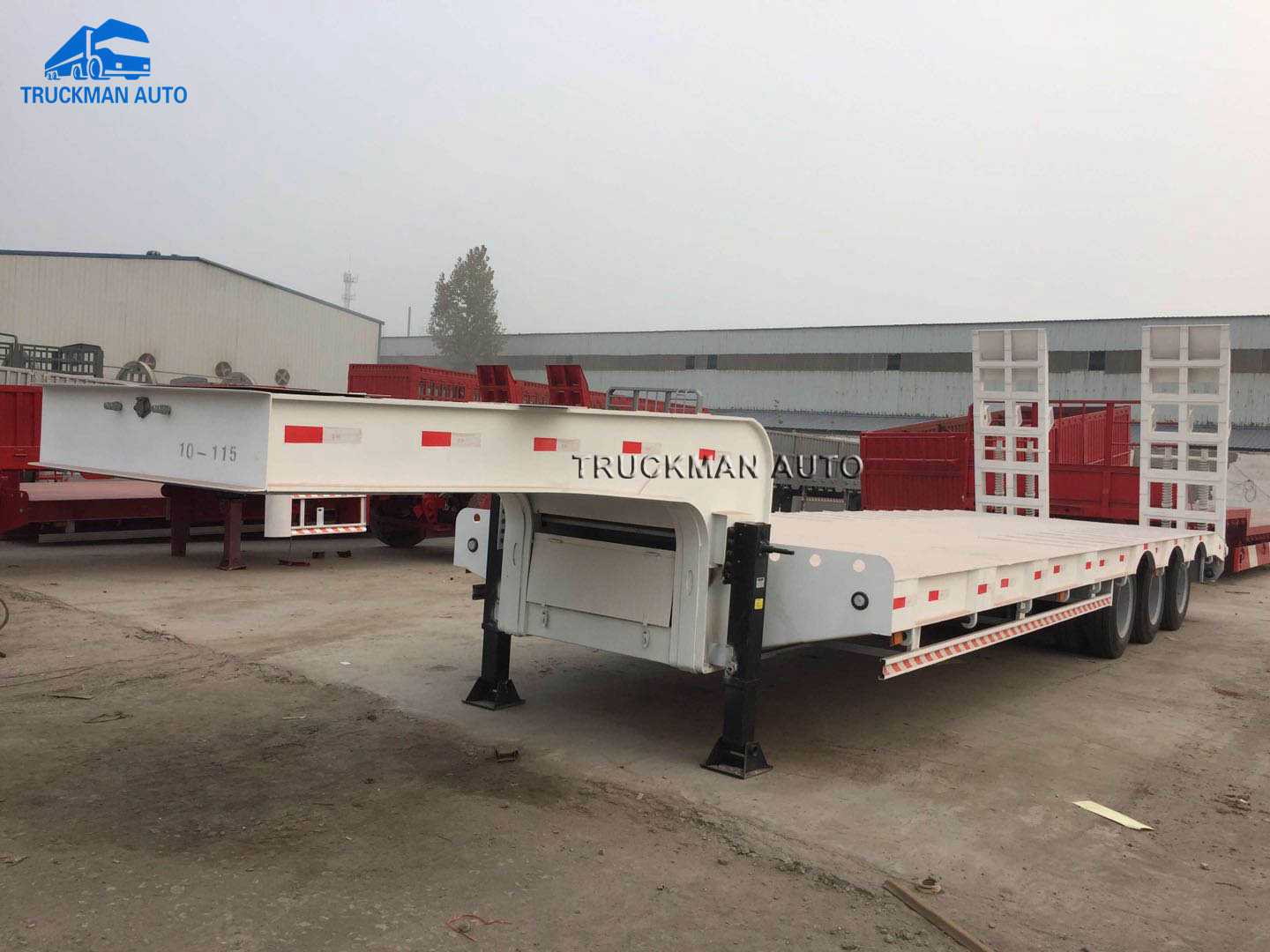

High Strength Steel 3 Axle 50 Tons Lowboy Semi Trailer

-2. 50 Tons Lowboy Semi Trailer Main Specification.

Description	Parameter value
Product Name	Lowboy semi trailer
Loading Weight	70000kg
Tare Weight	11000kg
Axle	3 axle, 3x13 tons
Suspension	America type, 8mm thickness
Leaf Spring	90x16mmx10pcsx6sets
Rim	18mm thickness
Tire	12.00R20 or 315/80R22.5, 12 pcs
Brake System	WABCO brand, ABS and 6 pcs brake chamber
Thickness Of Frame	Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam
Material	T700, high strength steel
Loading Area Size (LxWxH)	9000x3000x1300mm
Dimension	13000x3000x1300mm

-3. 50 Tons Lowboy Semi Trailer Design Draft.

High Strength Steel 3 Axle 50 Tons Lowboy Semi Trailer

The size of lowboy semi trailer could change according to your request.
